Real-time monitoring of traveling block height, hook weight, BOP switch status and other data to prevent collision, impact, overweight and misoperation of BOP, with reliable hazard warning, emergency braking, deceleration and interlocking protection functions.
Main functions：

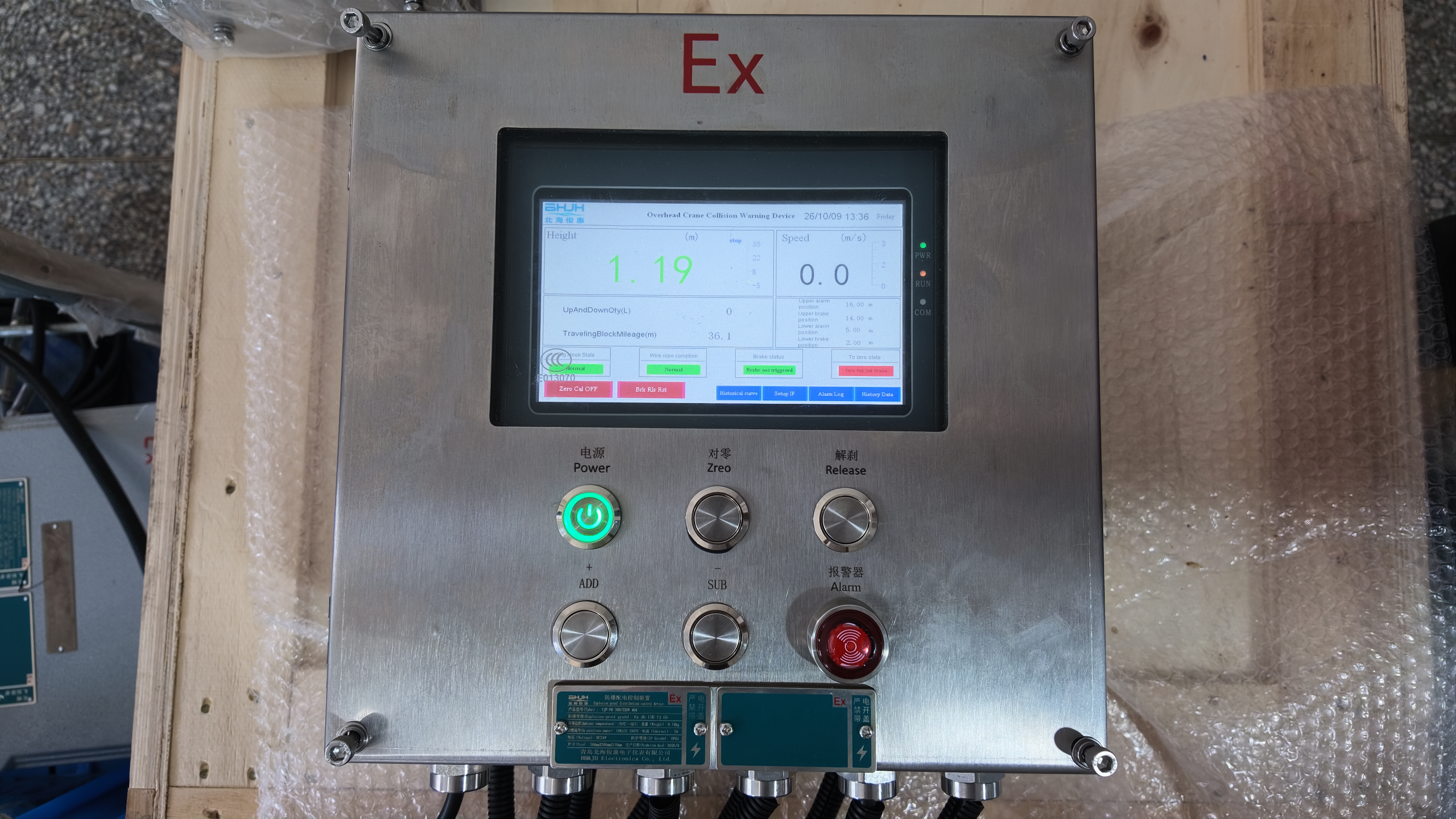

1.Real-time monitoring: the LCD screen of the main control box displays the position of the traveling block, the weight and movement direction of the hook, and the switch status of the BOP in real time.
2. Double-limit alarm: support independent setting of upper alarm (crown saver) and lower alarm (floor saver), and the alarm value is adjustable.
3. Position brake: automatically output the brake signal when reaching the set position of upper collision or lower collision, and the linkage draw-work will brake and stop.
4. Hook weight overweight brake: Hook weight overweight alarm and brake value can be set to realize double protection.
5.Interlocking protection: it can be interlocked with hook weight and BOP switch status for protection and braking.
6. Data record: alarm events and data records are automatically stored, and historical records can be queried.
7. U disk export: alarm events and data records support U disk export.
| Power supply | AC220V/DC24V | Range | -99.99 m ~ 99.99 m/0-10MPa |
|---|---|---|---|
| Comprehensive accuracy | ≤ 20mm/≤ ± 1% FS | Temperature range | -20 ℃ ~ + 60 ℃ |
| Protection class | IP65 |
| Function | Display the height and speed of the block | Altitude alarm | Overspeed alarm | Crown saver brake | Floor saver brake | Slow down and limit the speed | Overtravel bypass brake release | Display hook weight | Displays ton-kilometers | Displays the BOP status |
| Whether to default the function | Yes | Yes | Optional | Yes | Yes | Optional | Optional | Yes | Optional | Yes |
| Encoder installation | Draw-work rotary encoder/magnetic induction encoder | |||||||||
| Weight sensor | Pressure transmitter | |||||||||
| BOP inspection | Proximity switch | |||||||||
| Encoder interface | G3/4 or 1 -14UNS-2B Threaded Hollow Shaft | |||||||||
| Weight sensor interface | M14*1.5/M20*1.5 | |||||||||
| BOP detection interface | M14 | |||||||||
| Installation method | Driller's station embedded type or independent box hanging type; | |||||||||
| Display size | 7 inches | |||||||||
