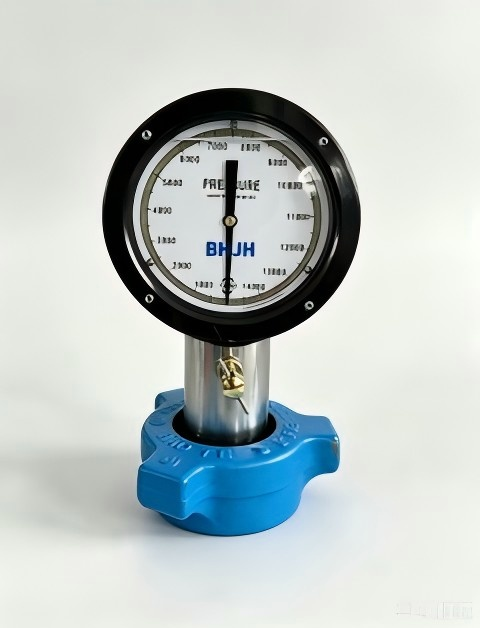

Can provide the 1502 mud gauge combined by the union.
Advantages of the product：
1、Good seismic performance and high measurement accuracy;
2、 The internal core element spring tube with high precision and long service life;
3、 The external part is equipped with a regulating damping valve, which can be adjusted according to the working conditions of the equipment to reduce the large swing of the pointer caused by the pulsating pressure and ensure the accuracy of the reading;
4、 Suitable for oil drilling, fracturing, cementing and other oil production equipment.
| Standard pressure range (MPa) | 7,16,25,40,60,80,100,120 | Pressure unit | MPa, psi |
|---|---|---|---|
| Accuracy class | ± 1.6%, ± 2.5% | Temperature range | -50 ℃ ~ + 65 ℃ |
| Connector thread specification | 2 inch NPT male |
