The rotary table speed sensor has the characteristics of non-contact measurement and strong anti-interference. It is an indirect measuring device and is suitable for the field operation environment of the oil field.
Advantages of the product：
1、Contactless sensing for long life and low maintenance;
2、 High-precision acquisition, can measure the speed/position at the same time;
3、Flexible installation and standardized adaption of drilling rigs.
| Operating voltage | 24VDC | Working temperature | -40 ℃ ~ + 60 ℃ |
|---|---|---|---|
| Humidity | ≤ 90% RH | Protection class | IP66 |
| Name | Model | Specification |
| Encoder | TJF-A1024HD | Resolution: 1PPR |

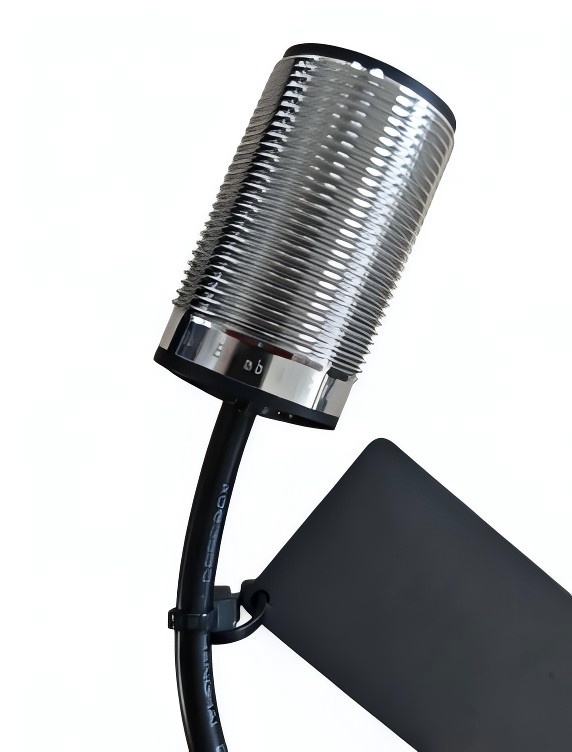

| Magnetic sensor | TJF-AM30HD | Detection distance: ≤ 10 mm |
