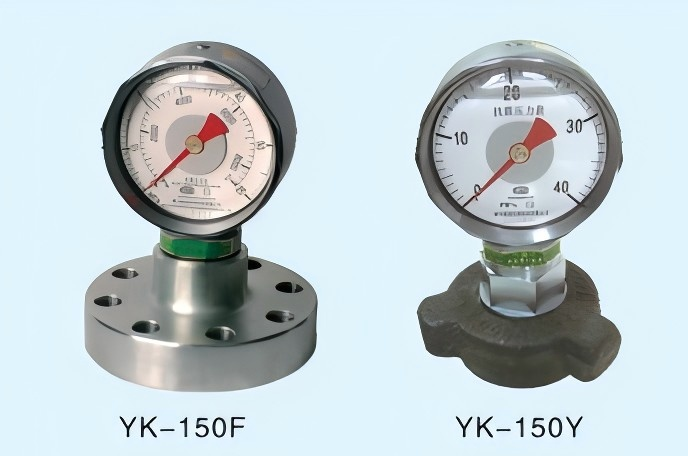

1、YK-150F: Flange type radial direct installation, equipped with BX152 flange, fixed by flange bolts, suitable for flange interface of mud pump and other equipment; 2、YK-150Y: union is directly installed in radial direction, equipped with 2 "FIG1502 union joint, fast union is screwed and fixed, commonly used for mud pu...
Advantages of the product：
1、 It can measure violent pulsation and instantaneous impact pressure, and is suitable for pressure measurement of high viscosity, large particle size, easy crystallization and easy solidification media;
2、Applicable to a wide range of industries, can be used in petroleum, coal, geology, machinery and other industries, can also be measured in the project site static pressure;
3、It has good anti-seismic performance and can work stably under the vibration condition of level 4 of the V. H.;
4、Rich range specifications, covering a variety of pressure ranges from 0 ~ 16 MPa to 0 ~ 120 MPa;
5、 Precision grading design, high pressure section (≥ 40MPa) can reach 1.6 level, high measurement accuracy.
| Measurement range (MPa) | 0 ~ 16, 25, 40, 60, 80, 100, 120 | Optional other pressure units | kPa, psi, bar |
|---|---|---|---|
| Accuracy class | 2.5 for ≤ 25MPa; ≥ 40 MPa is Grade 1.6 | Temperature range | -25 ℃ ~ + 55 ℃ |
| Vibration condition | not exceed the V. H. Level 4 specified in GB/T 17214 3 | Executive standard | JB/T6804 |
