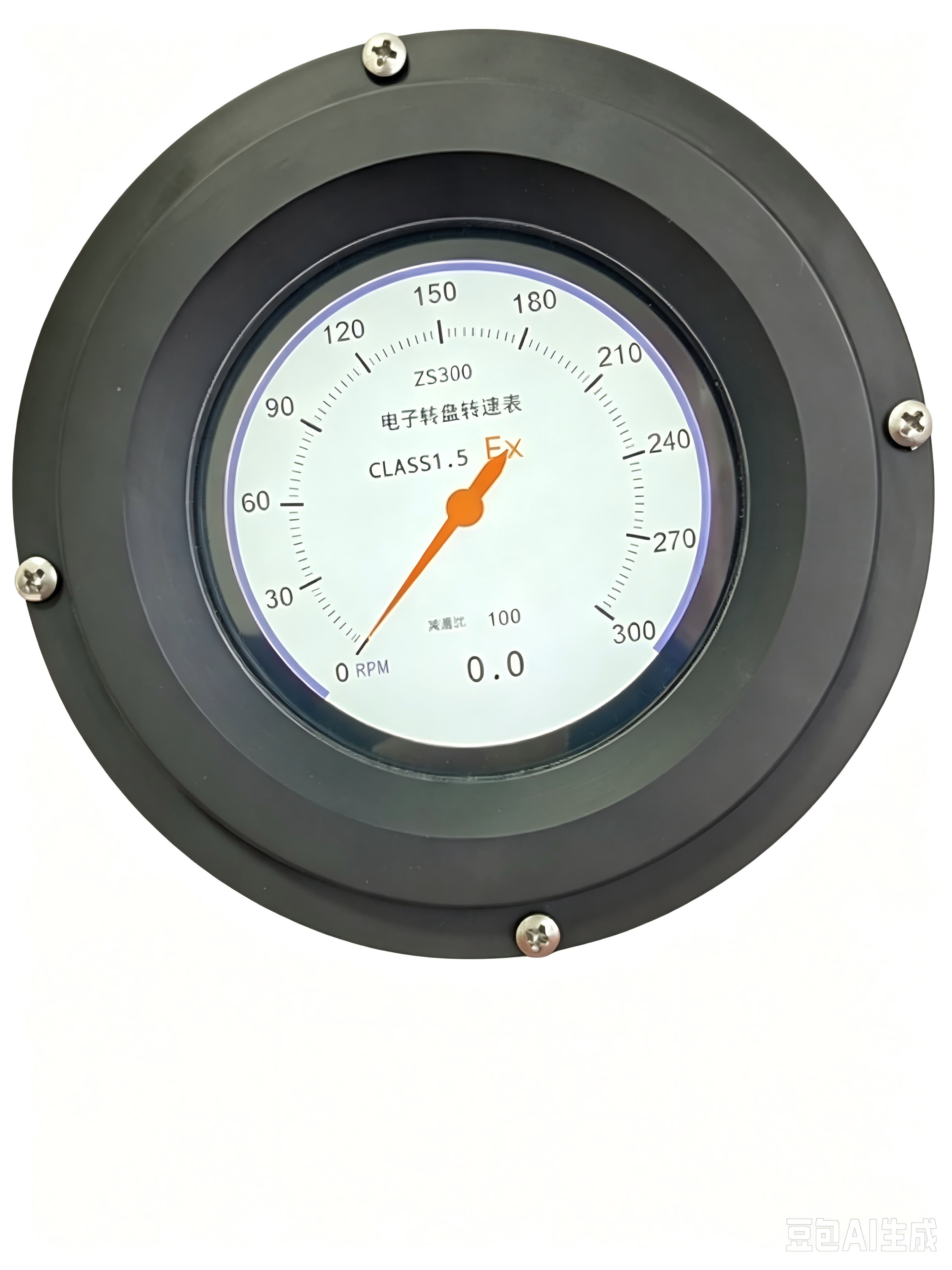

The rotary table tachometer is used together with the rotary table speed sensor and the speed signal cable. The rotating speed sensor of the rotary table adopts non-contact measurement, and the core of the rotating speed sensor is a proximity sensing switch or an encoder. The sensor outputs a pulse signal, which is tra...
Advantages of the product：
1、 Measurement error within ± 1.5%;
2、 Anti-vibration and anti-corrosion design, suitable for harsh working conditions of oil and gas wells;
3、Solid and reliable structure, high cost performance, simple structure and convenient assembly.
| Operating voltage | 24VDC | Temperature | -20 ℃ ~ + 60 ℃ |
|---|---|---|---|
| Humidity | ≤ 90% RH | Explosion-proof certification | CN EX |
| Protection class | IP65 |
| Name | Model | Specification | Signal form | Measurement error |
| Electronic dial tachometer | BJZS-300 | 0~300RPM | Pulse frequency | ±1.0% F.S |
| LCD electronic rotary table tachometer | BJZS-300Y | 0~300RPM | Pulse frequency | ±1.0% F.S |
