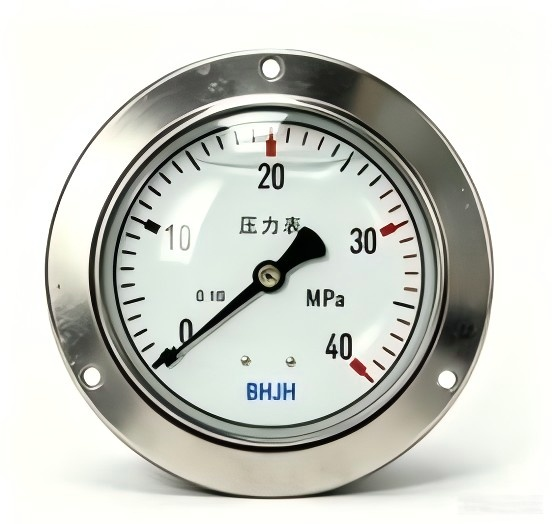

Advantages of the product：
1、Anti-corrosion material: the whole meter is made of stainless steel, and the key parts are made of 0Cr17Ni12Mo2 (316) material, which can resist corrosive gas and strong corrosive medium to be measured;
2、 Shock-resistant and anti-pulsation: the shock-resistant model is suitable for severe vibration conditions and can withstand strong pressure pulse impact;
3、 Stable and accurate measurement: when measuring the pressure of strong pulsating medium, the pointer has high indication accuracy and good stability;
4、 Long life: longer service life due to reliable construction.
| Nominal diameter | 40mm, 60mm, 63mm, 100mm, 150mm | Optional other pressure units | kPa, psi, bar |
|---|---|---|---|
| Material | stainless steel SUS304/316L | Accuracy class | ± 2.5%, ± 1.6%, ± 1.0% |
| Measuring range | 0 ~ 60 (MPa), 0 ~ 8700 (PSI) | Connection thread | 1/8 NPT, M14 × 1.5, G1/4 ", 1/4 NPT M20 × 1.5, G1/2", G3/8 ", 1/2 NPT, 9/16-18UNF-2B (female taper thread) |
| Ambient temperature | -40 ~ + 70 ℃ | Ambient vibration frequency | ≤ 25Hz |
| Amplitude | ≤ 1 mm |
