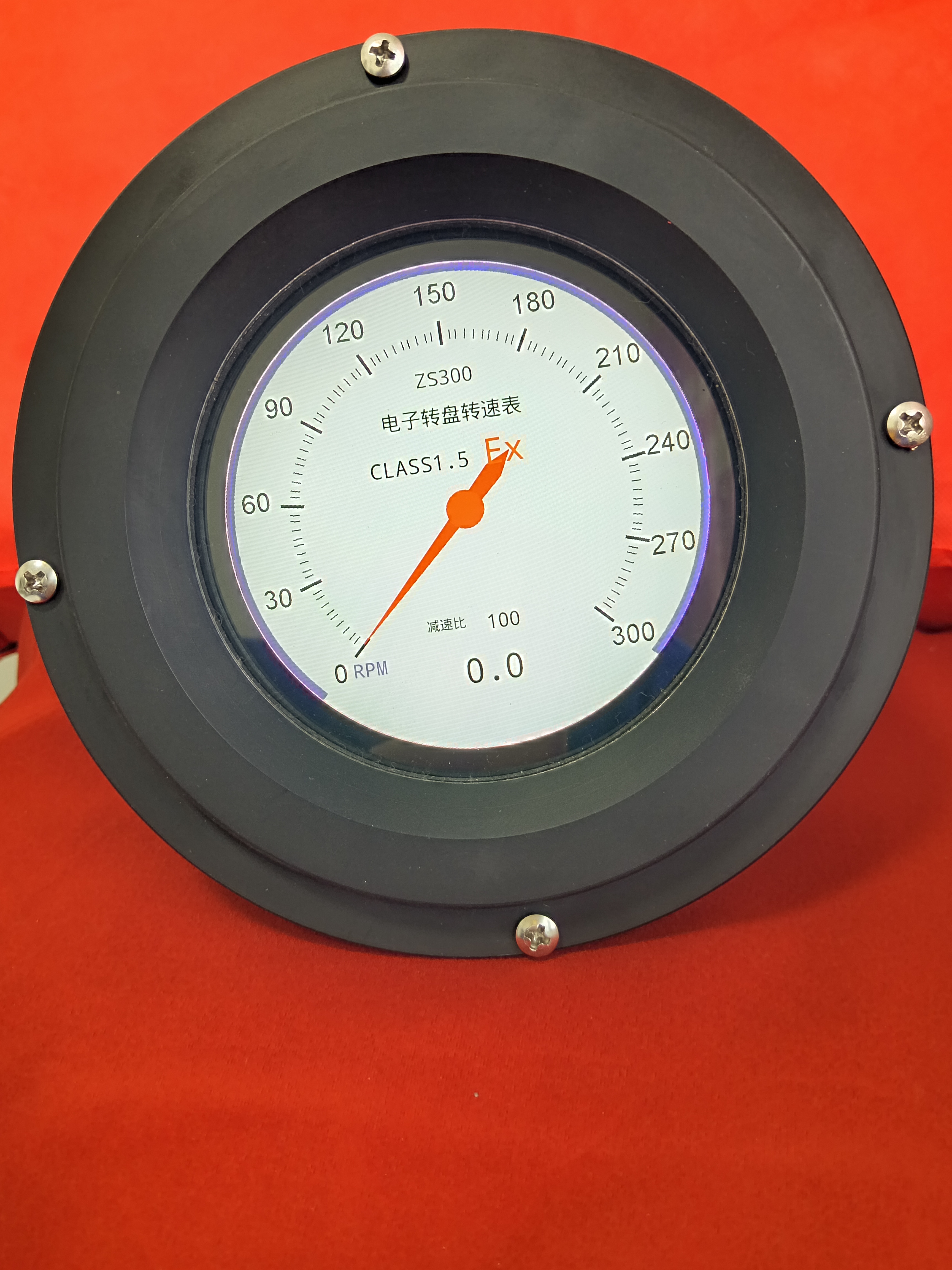

The rotary table torque gauge (electronic) is connected with a torque sensor to collect the torque electric signal of the rotary table and send it to the instrument through the signal cable to calculate and display the torque value of the rotary table in real time.
Advantages of the product：
1、 High precision, completely eliminate the "back pressure" phenomenon;
2、Fast response, no hydraulic oil transmission delay, not affected by the slow flow rate of hydraulic oil in winter;
3、 High cost performance, simple and reliable structure, few parts, easy installation, long replacement cycle, saving time and money.
| Operating voltage | 24VDC | Temperature | -30 ℃ ~ + 60 ℃ |
|---|---|---|---|
| Humidity | ≤ 90% RH | Explosion-proof certification | CN EX |
| Protection class | IP65 |
| Name | Model | Specification | Signal form | Measurement error |
| Idler (Electronic) Turntable Torque Gauge | ZN500 | 0 ~ 500 reticle (0 ~ 10 MPa) | 4～20mA RS485 | ±2.5% F.S |
| Electronic dial torque gauge | ZN40 | 0～40kN.m | 4～20mA RS485 | ±1.0% F.S |
