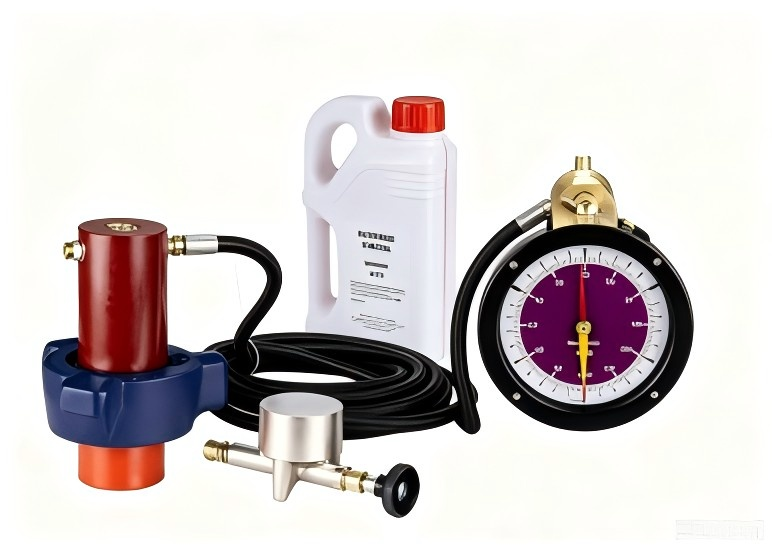

System composition: double pointer mud pressure gauge, pressure sensor (or 1:1 pressure sensor), high pressure hose, hand pump.
Advantages of the product：
1、It is developed and produced by introducing foreign advanced technology. It adopts double-pointer structure. One pointer displays the measured pressure, and the other pointer amplifies the pressure according to the ratio of 4:1. It solves the problem that the traditional single-pointer pressure gauge is difficult to read the micro-pressure difference, and the pressure reading is more accurate and reliable.
2、It can accurately measure the pressure of mud and acid media, and is applicable to a wide range of media;
3、It is applicable to various operation scenarios, such as cementing, cement fracturing truck operation and acidizing operation;
4、The pressure range has many optional specifications, and supports the display of various pressure units to adapt to different field use habits.
5、The length of the pipeline can be customized to meet the needs of on-site installation under different working conditions.
| Standard pressure range | 4000psi, 8000psi, 12000psi, 16000psi, the maximum pressure of the instrument can reach 120 MPa. | Optional other pressure units | MPa, psi, bar |
|---|---|---|---|
| Pressure sensor interface | 2-inch NPT union nut and male connector | Temperature range | -45 ℃ ~ + 60 ℃ |
| The standard pipeline length | 15 meters ( other lengths of pipelines can be customized as required.) |
